American Turbine Hvlp Sprayer Equipment - Parts - Service - Warranty

American Turbine Hvlp Sprayer AT-953 Three Stage with Siphon Spray Gun

(1 review) Write a Review
SKU:
AT953
MPN:
AT953
Availability:
Usually ships within 24 hours - EAH will contact you by phone or email with shipping details
Weight:
26.00 LBS
Width:
16.00 (in)
Height:
8.00 (in)
Depth:
13.00 (in)
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine AT-953 Three Stage with Siphon Spray Gun
  • American Turbine Hvlp Sprayer AT-953 Three Stage with Siphon Spray Gun
Frequently bought together:

Description

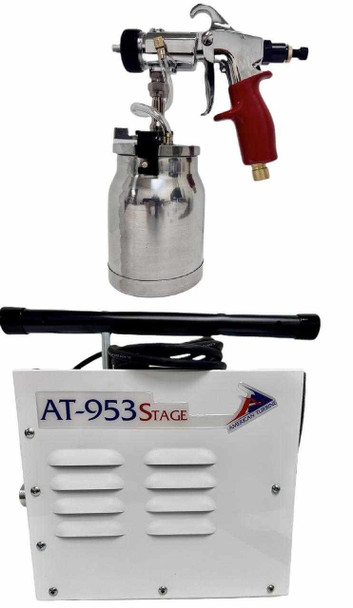

AMERICAN TURBINE AT-953 • 3-STAGE HVLP SPRAYER (COMPLETE UNIT)
Turbine + 25' Air Hose + Remote Switch + Siphon Spray Gun Package
American Turbine AT-953 3-Stage HVLP Complete Unit with Siphon Spray Gun
Shown: AT-953 turbine system with siphon cup gun, hose, and accessories.
Built for Real-World Refinishing Work
The AT-953 is a compact, portable 3-stage turbine HVLP spray system that delivers consistent atomization for solvent or waterborne finishes ideal for bathtub refinishing, cabinet work, furniture, trim, and controlled-overspray environments.
Why refinishers choose a 3-stage turbine:
  • Smooth, controlled HVLP pattern with less blow-back than “hotter” air systems
  • Portable and job-site friendly (no compressor required)
  • Reliable daily-driver setup for primers, clears, enamels, and urethane systems*
*Material choice depends on viscosity + reducer selection + gun setup.
What’s Included (Complete Unit)
  • AT-953 3-Stage Turbine
  • Siphon Spray Gun (cup-under) for turbine HVLP

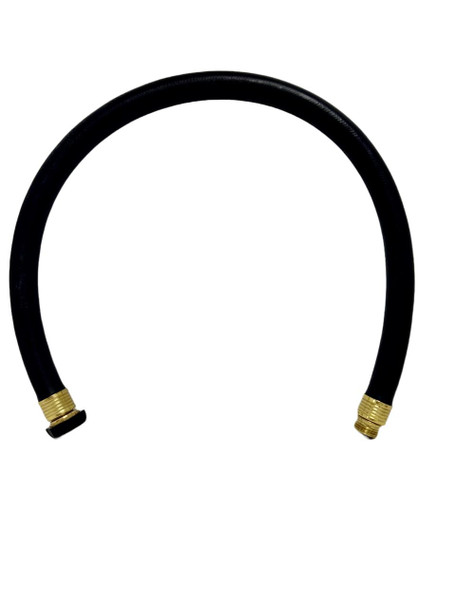

  • 25' Turbine Air Hose

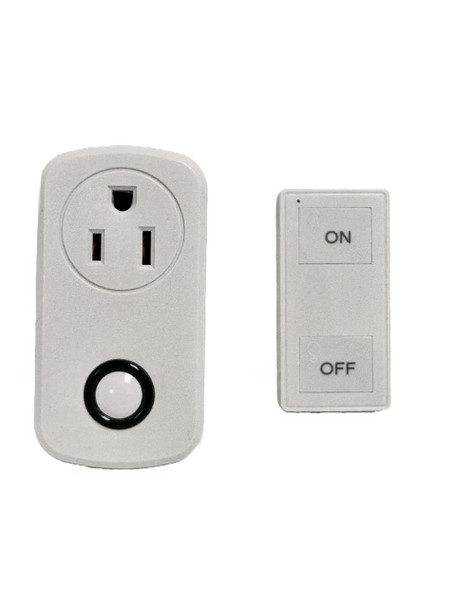

  • Remote Power Switch (on/off at the operator)
  • Hose fittings / connectors (as shown)




Key Performance Specs (AT-953)
Turbine Stages 3-Stage
Turbine Diameter 5.7"
Airflow 56 CFM @ 3/4" restriction • 101 CFM unrestricted
Pressure (at gun) 6 PSI (measured at air cap using 25' turbine hose)
Shipping Weight Approx. 30 lbs (system)
Finish Types Outstanding performance with waterborne or solvent finishes
Specs published by American Turbine and major distributors.
Best Uses
Refinishing & Coatings
  • Bathtub Refinishing
  • Cabinets & furniture
  • Trim, doors, and built-ins
  • Marine & woodworking finishes
Why Turbine HVLP
  • Controlled overspray
  • Portable setup
  • Consistent atomization
  • Heavy duty built to last

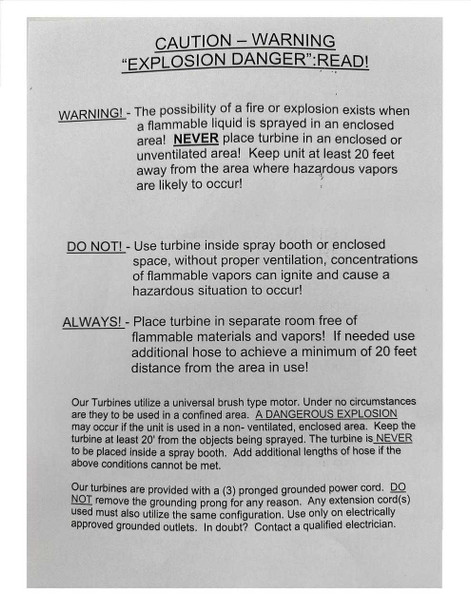

Important Setup & Safety Notes
  • Use only in well-ventilated areas. Do not operate the turbine in enclosed, unventilated spaces.
  • Keep the turbine a safe distance from the spray area (manufacturer guidance commonly calls for ~20').
  • Always follow coating SDS/label guidance, PPE, and local safety regulations.
Safety guidance summarized from American Turbine owner documentation.
EAH Equipment Authority Advantage
  • Parts + service mindset: we don’t just sell equipment we support it.
  • Platform knowledge: turbine HVLP setups are only as good as the gun setup, parts condition, and material viscosity.
  • Fast-ship essentials: build confidence that the part you need is available when you need it.
Pro Tip
Make your spray system a “no-downtime” tool: keep core wear parts on the shelf (needle/nozzle/seals/check valves).
Reminder
Requires quarterly “maintenance cadence” like oil changes for your sprayer.
Need help matching coatings viscosity to a 3-stage turbine? That’s what we do—build the right system for the job.
View AllClose

Warranty Information

Warranty: American Turbine systems are warranted for 18, with registration the Turbine Warranty is extended to 48 Months.
View AllClose

Additional Information

Turbine Stages:
3 Stage
View AllClose

1 Review

  • 5

    AT 953 Turbine HVLP Sprayer

    Posted by Gary on Jan 10th 2024

    For over 25 years I've used the American Turbine HVLP Sprayer in the Bathtub, Tile, and CounterTop Refinishing industry. They're built like a tank. For Manual Specking CounterTops no other gun does better. Especially when using the SharkGrip Modified Epoxy Topcoat for the process. To learn more in general about Turbine HVLP Sprayers I suggest reading this article. Click or CUT and PASTE this link into your browser. https://eahindustrial.com/blog/what-is-a-turbine-hvlp-high-volume-low-pressure-sprayer-/
