Name: American Turbine Spray Gun Fluid Set Complete
Brand: American Turbine Hvlp Sprayer Equipment - Parts - Service - Warranty
SKU: 31414
Availability: OutOfStock

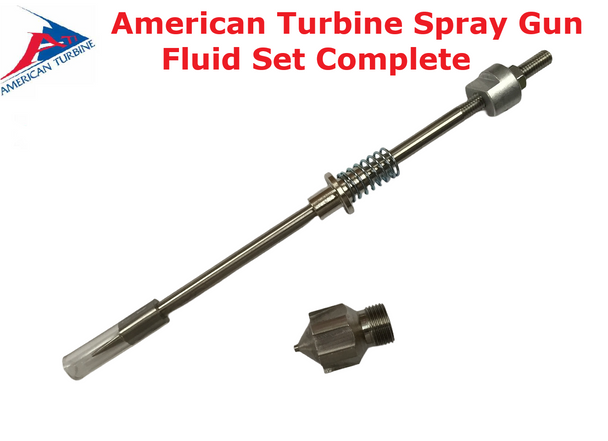

American Turbine Spray Gun Fluid Set Complete

(No reviews yet) Write a Review

SKU:

31414

MPN:

31414

Weight:

1.00 LBS

Width:

8.00 (in)

Height:

8.00 (in)

Depth:

8.00 (in)

Minimum Purchase:

1 unit

Description
0 Reviews

Description

AMERICAN TURBINE HVLP • FLUID SET SELECTION CHART

Choose the correct Needle + Nozzle size for the material you’re spraying (fits American Turbine HVLP guns).

What’s Included

1 Needle + 1 Nozzle (matched size)
Designed for American Turbine HVLP spray guns
Fast way to tune output & atomization

EAH Recommendations

Most bathtub/tile/countertop refinishers: the pre-installed 1.4mm is our go-to choice
Multispec Multi-Color Paint: we recommend 2.0mm or larger for proper output

Important Notes (Read This)

The fluid set (needle + nozzle) must be the same size.
The air cap may be larger or smaller than the fluid set to fine-tune atomization.
Tip size selection impacts output, pattern control, and finish quality.

Fits These American Turbine HVLP Spray Guns (Click to View)

Siphon Fed HVLP Spray Gun

Cup-under • Workhorse setup

American Turbine HVLP Siphon Spray Gun (Cup Under)

View Siphon Gun Page →

Gravity Feed HVLP Spray Gun

Cup-on-top • Fine control

View Gravity Gun Page →

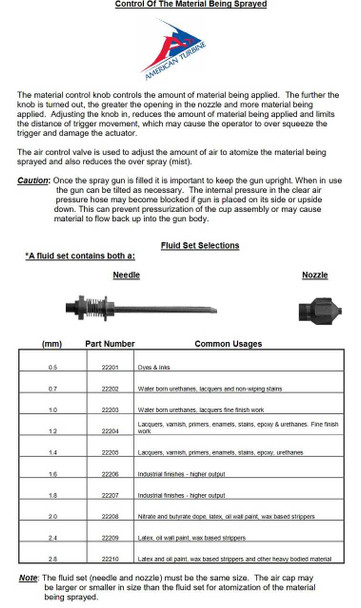

Fluid Set Selections (Needle + Nozzle) • Part Numbers & Common Uses

Size (mm)	Part Number	Common Uses	EAH Notes
0.5	22201	Dyes & inks	Ultra-fine materials only
0.7	22202	Waterbornes, lacquers, non-wiping stains	Fine detail / thin finishes
1.0	22203	Waterbornes, lacquers, fine finish work	Great for fine atomization
1.2	22204	Lacquers, varnish, primers, enamels, stains, epoxy & urethanes (fine work)	Versatile “finish” range
1.4	22205	Lacquers, varnish, primers, enamels, stains, epoxy, urethanes	MOST REFINISHERS Pre-installed tip size we highly recommend
1.6	22206	Industrial finishes – higher output	When you need more flow
1.8	22207	Industrial finishes – higher output	Great for heavier-bodied coatings
2.0	22208	Nitrate/butyrate dope, latex, oil wall paint, wax-based strippers	MULTISPEC Recommended 2.0mm or larger
2.4	22209	Latex, oil wall paint, wax-based strippers	Heavy materials / higher flow
2.8	22210	Latex & oil paint, wax-based strippers and other heavy-bodied material	Maximum flow for very heavy materials

Need Help Choosing the Right Tip?

Tell us what you’re spraying (primer/topcoat/Multispec/etc.) and your gun type (siphon or gravity). We’ll recommend the best needle/nozzle size and the right setup so you get a clean finish with minimal waste.
