Graco FinishPro HVLP 9.0 ProContractor Series 4 Stage Sprayer Part 17N266
- SKU:
- 17N266
- MPN:
- 17N266
- Availability:
- Usually Ships in 24 Hours. Item may ship direct from factory. EAH will contact you by phone or email with details.
- Weight:
- 18.00 LBS
- Width:
- 13.25 (in)
- Height:
- 8.50 (in)
- Depth:
- 14.00 (in)
Frequently bought together:
Description
Graco FinishPro HVLP 9.0 ProContractor Series 4 Stage Sprayer — Part #17N266
Professional Graco turbine HVLP sprayer package built for contractors who want more control, more convenience, and more output than entry-level HVLP systems. The FinishPro 9.0 ProContractor combines Graco’s 4-stage turbine platform with the EDGE II Plus gun, FlexLiner convenience, and contractor-focused features for serious fine-finish work.
EAH INDUSTRIAL - SharkGrip Positioning:
This is the Graco ProContractor step-up for users who need more than basic HVLP. The 9.0 ProContractor adds contractor-grade convenience and control to a 4-stage turbine platform, making it a smarter choice for finishers who want stronger performance, longer hose support, and a more complete working package.
1) Product Overview
What It Is
- Graco FinishPro HVLP 9.0 ProContractor Series Sprayer
- Part Number: 17N266
- 4-stage turbine HVLP sprayer package
- Designed for small to medium-sized fine finish jobs
Why Contractors Step Up To It
- More output than smaller HVLP systems
- Longer hose support up to 60 ft
- EDGE II Plus gun and ProContractor feature set
- FlexLiner convenience with spray-any-angle operation
Graco positions the 17N266 as a ProContractor series machine, not a standard-series sprayer. The 9.0 platform is built to give users stronger turbine output and more professional workflow features than the smaller standard HVLP packages.
2) Core Sprayer Features
| Feature | What It Means In The Field |
|---|---|
| 4-Stage / 9.0 PSI HVLP Platform | Provides more turbine output than smaller systems, helping the contractor handle a wider range of coatings with better control and less struggle. |
| EDGE II Plus Gun Included | Comes ready with Graco’s EDGE II Plus gun for finer control and fluid-set flexibility. |
| FlexLiner System | Supports spray-any-angle operation while reducing some of the hassle of a traditional rigid cup routine. |
| #3 and #4 Quick-Release Fluid Sets Included | Gives the contractor practical setup options for lighter materials and general-purpose finish work. |
| 30 ft Super-Flex Air Hose | Provides useful working distance with better flexibility than a stiff traditional hose setup. |
| Up to 60 ft Max Hose Support | Allows more working reach on jobs where the turbine needs to stay farther from the spray area. |

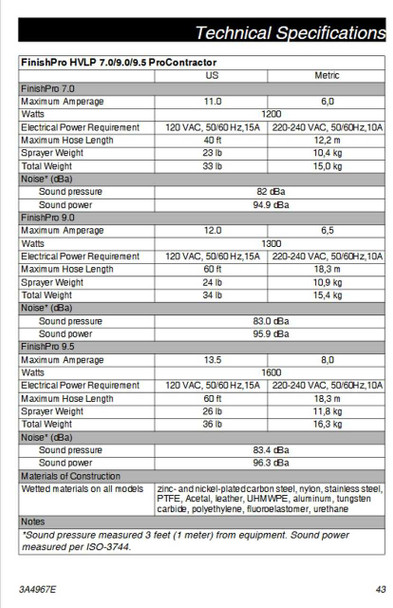

3) Technical Snapshot
| Specification | Graco Listing |
|---|---|
| Part Number | 17N266 |
| Product Series | ProContractor |
| Series | 9.0 |
| Turbine Stages | 4 Stage |
| Maximum PSI | 9.0 psi |
| Maximum Working Pressure | 10 psi |
| Maximum Hose Length | 60 ft |
| Recommended Annual Usage | Up to 50 gallons per year |
| Weight | 24 lb |
These specs align with Graco’s current FinishPro HVLP product pages and brochure data for the 9.0 ProContractor series.
4) Best Use Cases
| User / Application | How The 9.0 ProContractor Fits |
|---|---|
| Cabinet & Fine-Finish Contractors | A strong fit for users who need better finish control and more turbine support than entry-level HVLP systems provide. |
| Trim, Doors & Built-Ins | Well suited for detailed finish work where hose flexibility and spray-any-angle convenience improve productivity. |
| Small to Medium Fine-Finish Jobs | Graco directly positions the 9.0 ProContractor for small to medium-sized fine finish work. |
| Professional Contractors Wanting More Than Standard-Series HVLP | This package is especially attractive when the buyer wants stronger turbine output, contractor-grade convenience, and a more complete professional setup right out of the box. |
5) Why EAH Industrial Likes This Sprayer
What Makes It Valuable
- A real step up from smaller HVLP packages
- Includes the gun, hose package, and multiple fluid sets
- FlexLiner convenience helps modernize the workflow
- A contractor-grade system, not a stripped-down starter machine
Best Buyer Fit
- Finish contractors wanting more output and flexibility
- Users needing longer hose support and better gun handling
- Painters spraying a range of fine-finish coatings
- Buyers stepping above smaller or standard-series machines
EAH Industrial Observation: The 17N266 makes sense because it sits in the practical sweet spot for many contractors. It is clearly stronger than a smaller HVLP package, but it is still focused on controlled fine-finish work rather than just being a bigger machine for the sake of being bigger.
6) What You’re Buying
| Included / Expected | Notes |
|---|---|
| EDGE II Plus Gun | Professional Graco fine-finish spray gun |
| 32 oz FlexLiner System | Spray-any-angle cup/liner workflow |
| #3 / #4 Quick-Release Fluid Sets | Useful setup choices for fine-finish materials |
| 30 ft Super-Flex Air Hose | Main hose for reach and flexibility |
| Automotive Main Filter | Included in the package per current product references |
If your customer wants a Graco HVLP package that goes beyond standard-series basics but does not need the 9.5 level package, the 17N266 is a very strong middle-ground ProContractor choice.

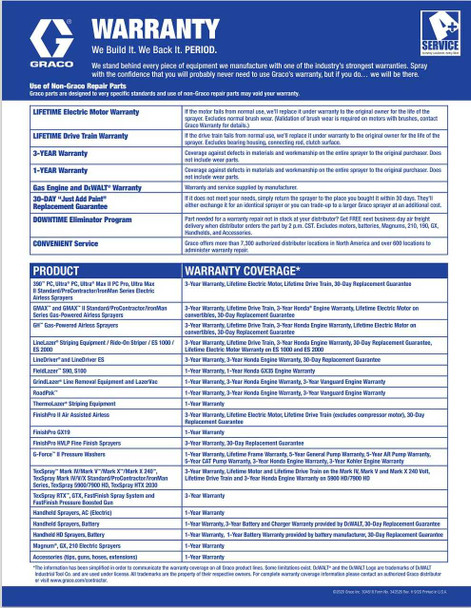

Warranty Information
WARRANTY We Build It. We Back It. PERIOD. We stand behind every piece of equipment we manufacture with one of the industry’s strongest warranties. Spray with the confidence that you will probably never need to use Graco’s warranty, but if you do... we will be there. LIFETIME Electric Motor Warranty If the motor fails from normal use, we’ll replace it under warranty to the original owner for the life of the sprayer. Excludes normal brush wear. (Validation of brush wear is required on motors with brushes, contact Graco Warranty for details.) LIFETIME Drive Train Warranty If the drive train fails from normal use, we’ll replace it under warranty to the original owner for the life of the sprayer. Excludes bearing housing, connecting rod, clutch surface. 3-YEAR Warranty Coverage against defects in materials and workmanship on the entire sprayer to the original purchaser. Does not include wear parts. 1-YEAR Warranty Coverage against defects in materials and workmanship on the entire sprayer to the original purchaser. Does not include wear parts. Gas Engine and DeWALT® Warranty Warranty and service supplied by manufacturer. 30-DAY “Just Add Paint” Replacement Guarantee If it does not meet your needs, simply return the sprayer to the place you bought it within 30 days. They’ll either exchange it for an identical sprayer or you can trade-up to a larger Graco sprayer at an additional cost. DOWNTIME Eliminator Program Part needed for a warranty repair not in stock at your distributor? Get FREE next business day air freight delivery when distributor orders the part by 2 p.m. CST. Excludes motors, batteries, Magnums, 210, 190, GX, Handhelds, and Accessories. CONVENIENT Service Graco offers more than 7,300 authorized distributor locations in North America and over 600 locations to administer warranty repair. WARRANTY We Build It. We Back It. PERIOD. We stand behind every piece of equipment we manufacture with one of the industry’s strongest warranties. Spray with the confidence that you will probably never need to use Graco’s warranty, but if you do... we will be there. PRODUCT WARRANTY COVERAGE* 390™ PC, Ultra® PC, Ultra® Max II PC Pro, Ultra Max II Standard/ProContractor/IronMan Series Electric Airless Sprayers 3-Year Warranty, Lifetime Electric Motor, Lifetime Drive Train, 30-Day Replacement Guarantee GMAX™ and GMAX™ II Standard/ProContractor/IronMan Series Gas-Powered Airless Sprayers 3-Year Warranty, Lifetime Drive Train, 3-Year Honda® Engine Warranty, Lifetime Electric Motor on convertibles, 30-Day Replacement Guarantee GH™ Gas-Powered Airless Sprayers 3-Year Warranty, Lifetime Drive Train, 3-Year Honda Engine Warranty, Lifetime Electric Motor on convertibles, 30-Day Replacement Guarantee LineLazer® Striping Equipment / Ride-On Striper / ES 1000 / ES 2000 3-Year Warranty, Lifetime Drive Train, 3-Year Honda Engine Warranty, 30-Day Replacement Guarantee, Lifetime Electric Motor Warranty on ES 1000 and ES 2000 LineDriver® and LineDriver ES 3-Year Warranty, 3-Year Honda Engine Warranty, 30-Day Replacement Guarantee FieldLazer™ S90, S100 1-Year Warranty, 1-Year Honda GX35 Engine Warranty GrindLazer® Line Removal Equipment and LazerVac 1-Year Warranty, 3-Year Honda Engine Warranty, 3-Year Vanguard Engine Warranty RoadPak™ 1-Year Warranty, 3-Year Honda Engine Warranty, 3-Year Vanguard Engine Warranty ThermoLazer® Striping Equipment 1-Year Warranty FinishPro II Air Assisted Airless 3-Year Warranty, Lifetime Electric Motor, Lifetime Drive Train (excludes compressor motor), 30-Day Replacement Guarantee FinishPro GX19 1-Year Warranty FinishPro HVLP Fine Finish Sprayers 3-Year Warranty, 30-Day Replacement Guarantee G-Force™ II Pressure Washers 1-Year Warranty, Lifetime Frame Warranty, 5-Year General Pump Warranty, 5-Year AR Pump Warranty, 5-Year CAT Pump Warranty, 3-Year Honda Engine Warranty, 3-Year Kohler Engine Warranty TexSpray™ Mark IV/Mark V™/Mark X™/Mark X 240™, TexSpray Mark IV/V/X Standard/ProContractor/IronMan Series, TexSpray 5900/7900 HD, TexSpray HTX 2030 3-Year Warranty, Lifetime Motor and Lifetime Drive Train on the Mark IV, Mark V and Mark X 240 Volt, Lifetime Drive Train and 3-Year Honda Engine Warranty on 5900 HD/7900 HD TexSpray RTX™, GTX, FastFinish Spray System and FastFinish Pressure Boosted Gun 3-Year Warranty Handheld Sprayers, AC (Electric) 1-Year Warranty Handheld Sprayers, Battery 1-Year Warranty, 3-Year Battery and Charger Warranty provided by DeWALT, 30-Day Replacement Guarantee Handheld HD Sprayers, Battery 1-Year Warranty, 1-Year Battery Warranty provided by battery manufacturer, 30-Day Replacement Guarantee Magnum®, GX, 210 Electric Sprayers 1-Year Warranty Accessories (tips, guns, hoses, extensions) 1-Year Warranty *The information has been simplified in order to communicate the warranty coverage on all Graco product lines. Some limitations exist. DeWALT® and the DeWALT Logo are trademarks of DeWALT Industrial Tool Co. and are used under license. All trademarks are the property of their respective owners. For complete warranty coverage information please contact an authorized Graco distributor or visit www.graco.com/contractor. ©2020 Graco Inc. 304518 Form No. 342526 Rev. H 9/20 Printed in U.S.A. Use of Non-Graco Repair Parts Graco parts are designed to very specific standards and use of non-Graco repair parts may void your warranty.
