Titan
Titan HVLP Maxum Elite Spray Gun Projector Set
- SKU:
- 524294
- MPN:
- 524293
- Condition:
- New
- Availability:
- Usually Ships same day or Drop Ship Factory Direct
- Weight:
- 1.00 LBS
- Width:
- 8.00 (in)
- Height:
- 4.00 (in)
- Depth:
- 1.00 (in)
Frequently bought together:
Description

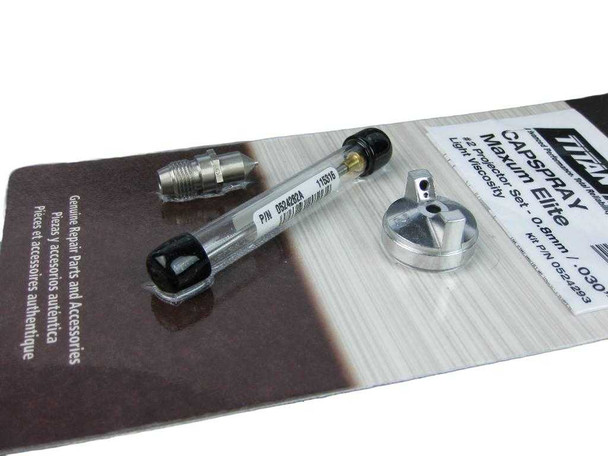

Titan Maxum Elite Spray Gun Projector Sets — Part Numbers 524293, 524294, 524295, 524296, 524297, 524298
Genuine Titan Maxum Elite projector / needle sets for matching fluid delivery, atomization, and output to the coating you are spraying. These sets cover everything from fine-finish materials to general-purpose primer and topcoat work, all the way up to larger-output setups better suited for heavy-bodied coatings, Multispec multi-color fleck paints, and stone-finish materials.
EAH INDUSTRIAL - SharkGrip Positioning:
The projector set determines how the Maxum Elite really behaves. The gun body matters, but the needle / nozzle / air cap set is what really decides whether the gun is tuned for fine finish, everyday bathtub refinishing primers and topcoats, or larger-output materials like Multispec multi-color fleck and stone-finish coatings.
1) Projector Set Overview
What These Sets Are

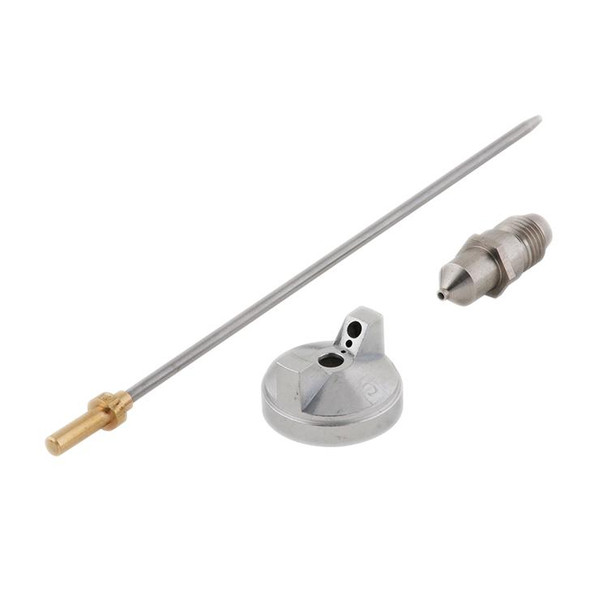

- Matched needle / nozzle / air cap projector sets for the Titan Maxum Elite gun
- Used to change material flow, atomization, and output level
- Critical for matching the gun to the coating being sprayed
- Available from fine-finish sizes up through high-output sizes
Why Pros Change Sets
- Better atomization for the material being sprayed
- More predictable film build and pattern control
- Less fighting the gun with coatings that are too thick or too thin for the setup
- Better results in primers, topcoats, and specialty decorative finishes
A Maxum Elite can feel like two completely different guns depending on the projector set installed. Choosing the right set is one of the most important setup decisions a refinisher can make.
2) Maxum Elite Projector Set Grid
| Part Number | Set Number | Size | Titan Type | Best Use |
|---|---|---|---|---|
| 524293 | #2 | 0.8 mm | Fine Finish | Best for very light-viscosity materials, fine-finish work, stains, clears, and lighter coatings where a smaller setup is needed. |
| 524294 | #3 | 1.3 mm | All-Purpose | Excellent general-purpose size for bathtub refinishing primers and topcoats. One of the best all-around Maxum Elite setups for everyday professional spraying. |
| 524295 | #4 | 1.8 mm | High Output | A step up in output for heavier-bodied coatings, fuller primers, and jobs where more material delivery is needed than the 1.3 mm set provides. |
| 524296 | #5 | 2.2 mm | High Output | Strong fit for heavier specialty coatings, including Multispec multi-color fleck paints and decorative stone-finish type materials that need substantially more output. |
| 524297 | #6 | 2.4 mm | High Output | Very good for high-build or specialty decorative materials where the contractor needs a larger opening and stronger material delivery than the #5 set. |
| 524298 | #7 | 2.6 mm | Highest Output | Best reserved for the heaviest-output applications in this group, especially Multispec multi-color fleck, stone-finish coatings, and other heavier decorative materials. |
3) Best Sizes For Bathtub Refinishing
| Refinishing Need | Recommended Direction |
|---|---|
| General-Purpose Primer and Topcoat Work | The 1.3 mm (#3 / 524294) is one of the best all-around Maxum Elite sizes for bathtub refinishing. It is an excellent general-purpose setup for many primers and topcoats. |
| Field Preference Range | Many refinishers like the 1.3 mm to 1.5 mm range for everyday bathtub primer and topcoat work because it balances control and output well. In the specific Titan Elite part numbers listed here, the 1.3 mm #3 set is the key general-purpose choice. |
| Heavier Primers or Fuller Materials | The 1.8 mm (#4 / 524295) can make sense when a contractor needs more output than the #3 provides. |
| Decorative Fleck / Stone-Finish Coatings | The larger 2.2 mm, 2.4 mm, and 2.6 mm sets are the better direction for Multispec multi-color fleck paints or heavier decorative stone-finish materials. |
4) Why EAH Industrial Likes These Sets
What Makes Them Valuable
- Lets contractors truly tune the Maxum Elite to the coating
- Improves finish quality when matched correctly
- Avoids the mistake of trying to force one size to spray everything
- Makes the Maxum Elite more versatile across multiple trades
Refinishing Industry Relevance
- The 1.3 mm #3 set is one of the best general-purpose choices for tub and tile work
- The 1.8 mm #4 set is useful when more primer output is needed
- The larger high-output sets make much more sense for Multispec and stone-finish materials
- A serious refinisher should think of projector sets like tools in a toolbox
EAH Industrial Observation: Many spray problems blamed on the gun are really projector-set mismatch problems. The Maxum Elite is a very capable platform, but it performs best when the operator chooses the right set for the actual coating being sprayed.
5) What You’re Buying
| Part Number | What You Get |
|---|---|
| 524293 | Maxum Elite #2 projector set — 0.8 mm fine-finish setup |
| 524294 | Maxum Elite #3 projector set — 1.3 mm all-purpose setup |
| 524295 | Maxum Elite #4 projector set — 1.8 mm high-output setup |
| 524296 | Maxum Elite #5 projector set — 2.2 mm high-output setup |
| 524297 | Maxum Elite #6 projector set — 2.4 mm high-output setup |
| 524298 | Maxum Elite #7 projector set — 2.6 mm highest-output setup |
If you are matching one of these sets to a specific primer, topcoat, Multispec product, or stone-finish material, call us. The right set can save a lot of time, material, and frustration.
