Apollo
Apollo PRECISION-6 PRO Turbo Paint Spray System – PLUS Package
(No reviews yet)
Write a Review
- SKU:
- P6PRO+110-7700
- Condition:
- New
- Weight:
- 25.00 LBS
- Width:
- 14.00 (in)
- Height:
- 9.00 (in)
- Depth:
- 12.00 (in)
Frequently bought together:
Description

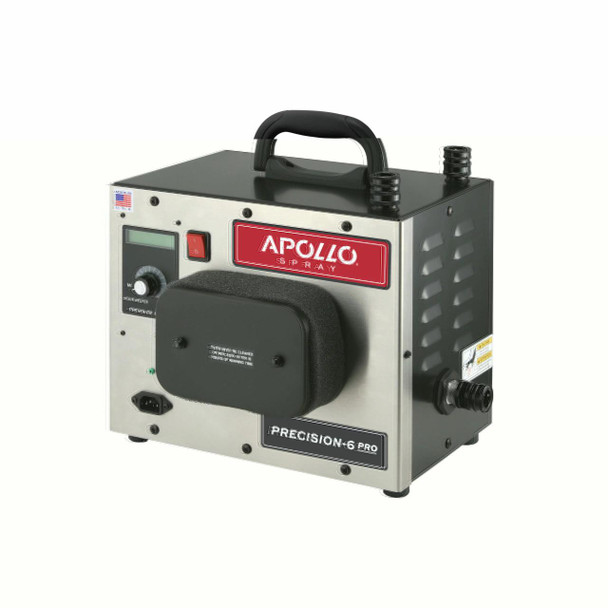

Apollo Precision-6 Pro Plus — Professional HVLP Turbine Spray System
6-stage TrueHVLP™ power for serious bathtub, tile, countertop, cabinet, and wood refinishers who need smooth atomization, controlled overspray, and real coating performance in the field.
EAH INDUSTRIAL - SharkGrip Positioning:
Thin less. Atomize more. The Apollo Precision-6 Pro Plus gives professional refinishers the turbine power and pressure control needed for modern high-solids coatings, 2K urethanes, epoxy primers, cabinet coatings, and fine wood finishes.
1) Core Turbine Performance
| Feature | Apollo Precision-6 Pro Plus | Why It Matters in the Field |
|---|---|---|
| Turbine Stages | 6-Stage Turbine | More atomization authority than smaller turbine systems when spraying heavier coatings. |
| Sealed Pressure | 11.5 PSI | Helps break up higher-solids materials instead of forcing the operator to over-reduce the coating. |
| Pressure Control | PCS™ Pressure Control System | Regulates motor speed, voltage, and amperage to maintain precise atomizing pressure. |
| Spray Gun | Apollo A7700 AtomiZer™ Non-Bleed Spray Gun | Professional-grade gun platform with needle, nozzle, and air cap options for different coatings. |
| Hose System | 32' Apollo-Flex™ Hose with Ultra-Flex™ Whip Hose | Long reach with reduced wrist fatigue at the gun connection. |

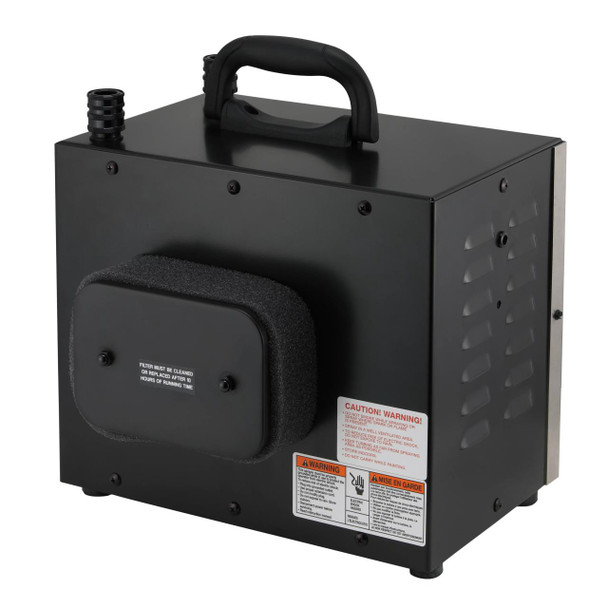

| Filtration | QuadraClean™ Dual Washable Filtration | Keeps air intake and motor cooling cleaner for better long-term reliability. |
| Monitoring | LCD Message Center | Displays pressure, hours, idle status, filter warnings, and temperature warnings. |
| Motor Protection | PowerPause™ | Automatic idle mode helps preserve motor life during all-day professional spraying. |
EAH Industrial Prop Tip: A true professional turbine system is not just about spraying material. It is about maintaining atomization quality without destroying the chemistry of the coating by over-reducing it.

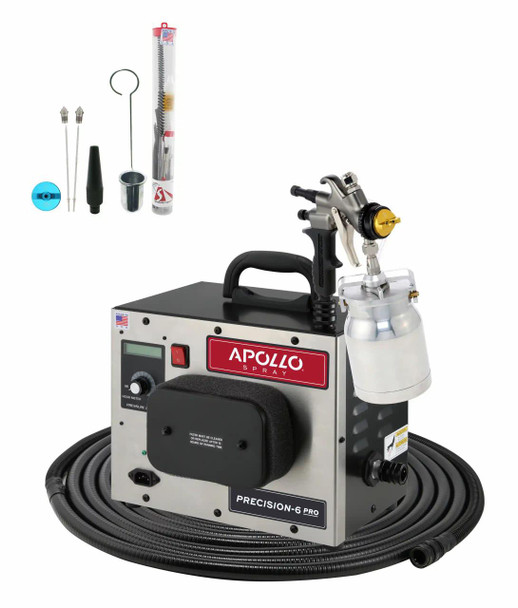

2) Plus Package: What Comes With the System
Precision-6 Pro System
- Precision-6 Pro 6-stage turbine
- Apollo A7700 AtomiZer™ spray gun
- 32' Apollo-Flex™ hose
- Ultra-Flex™ whip hose at gun connection
- Handi-Hold™ spray gun docking station

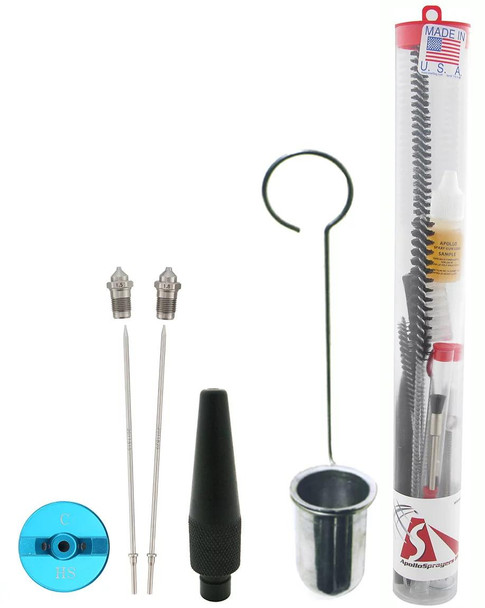

Plus Accessory Kit
- Deluxe spray gun case
- Wrench / spanner
- Gun lube
- 1.5 mm and 1.8 mm needle / nozzle sets
- C-HS air cap
- Deluxe cleaning kit
- Viscosity cup and blow-off tool
Package contents may vary by selected configuration. Always verify selected cup style, needle size, and air cap before checkout.
3) Apollo Air Cap Selection: What B, C, Standard, and HS Mean
Simple Rule:
B = smaller/finer needle range. C = larger/heavier needle range. Standard = clears and fine enamels. HS = High Solids for thicker pigmented coatings.
| Air Cap Choice | Compatible Needle / Nozzle Sizes | Best Coating Match | Best Customer Type |
|---|---|---|---|
| “B” Standard Air Cap | 1.0, 1.3, 1.5 mm | Clear finishes, stains, sealers, thinner enamels, fine wood finishing | Furniture finisher, cabinet clearcoat user, woodworker |
| “B” HS Air Cap | 1.0, 1.3, 1.5 mm | High-solids wood coatings, pigmented cabinet coatings, many 2K urethane topcoats | Best daily-driver choice for most professional refinishers |
| “C” Standard Air Cap | 1.8, 2.0 mm | Heavier enamels, epoxy primers, industrial coatings, high-build primers | Tub/tile refinisher spraying primers or heavier coatings |
| “C” HS Air Cap | 1.8, 2.0 mm | Thicker, high-viscosity, pigmented, high-solids coatings | Best heavy-material choice for epoxy primer and high-build work |
Standard Air Caps: generally used for clear finishes and high-quality enamels.
HS Air Caps: HS means High Solids. These are intended for higher-viscosity, thicker, pigmented, or high-solids coatings.
HS Air Caps: HS means High Solids. These are intended for higher-viscosity, thicker, pigmented, or high-solids coatings.
4) Needle Size Selector: Which Setup Should You Choose?
| Needle / Nozzle Size | Recommended Air Cap | Coating Type | EAH Industrial Recommendation |
|---|---|---|---|
| 1.0 mm | B Standard or B HS | Very thin clears, stains, sealers, fine detail work | Too small for most tub coatings |
| 1.3 mm | B HS preferred | Cabinet coatings, finer pigmented finishes, some 2K urethanes | Excellent for wood/cabinet finishing |
| 1.5 mm | B HS preferred | High-solids cabinet coatings, many 2K urethane topcoats, bathtub topcoat work | Best all-around pro refinishing choice |
| 1.8 mm | C Standard or C HS | Epoxy primers, high-build primers, heavier pigmented materials | Best for primer and heavier material work |
Recommended Possible / Specialty Use Not Ideal
5) Coating Compatibility: Bathtub, Cabinet, Wood & Industrial Refinishing
| Application | Suggested Needle | Suggested Air Cap | Why This Setup Works |
|---|---|---|---|
| Wood Stains / Sealers | 1.0 or 1.3 mm | B Standard | Fine control for thin materials and light film build. |
| Clear Coats / Lacquers | 1.0 or 1.3 mm | B Standard or B HS | Smooth atomization for fine furniture and cabinet finishing. |
| Pigmented Cabinet Coatings | 1.3 or 1.5 mm | B HS | High-solids cap helps break up thicker pigmented coatings. |
| 2K Urethane Bathtub / Tile Topcoats | 1.5 mm | B HS | Excellent balance of atomization, film build, and finish quality for professional refinishing. |
| Epoxy Primer / High-Build Primer | 1.8 mm | C HS or C Standard | Larger fluid path and heavier cap support thicker primer materials. |
| Multicolor / Specialty Coatings | 1.5 or 1.8 mm | B HS or C HS | Depends on flake size, viscosity, texture target, and desired pattern. |
Always test your coating on a sample panel before spraying a customer job. Temperature, reducer selection, viscosity, and spray distance all affect final atomization.
6) Gravity Feed vs Bottom Feed: Which Gun Style Should You Choose?
Gravity Feed
- Best for smaller batches and precision finish work
- Excellent control for cabinet doors, furniture, vanities, and tub work
- Less material left in the cup at the end of the job
- Preferred by many finishers for fine atomization and fast cleanup
Bottom Feed / Siphon Feed
- Good for larger material volume and longer spray sessions
- Useful when spraying multiple doors, panels, or repetitive production work
- Cup is below the gun, which some operators prefer for balance
- May be preferred when frequent refilling is a concern
EAH Industrial Recommendation: For most bathtub, tile, countertop, cabinet, and wood refinishing work, gravity feed with a 1.3 mm or 1.5 mm setup is the most versatile starting point. Add a 1.8 mm setup for primer-heavy work.
7) Why 6-Stage HVLP Matters With Modern Coatings
Underpowered Turbine Problems
- Operator adds too much reducer to make the coating spray
- Reduced sprayed solid content
- Higher risk of orange peel and weak film build
- Possible gloss loss, pinholes, hazing, blushing, or poor durability
Precision-6 Pro Advantages
- 6-stage turbine power for better atomization headroom
- 11.5 PSI sealed pressure for demanding materials
- PCS™ control helps maintain atomizing pressure
- Better suited for modern high-solids professional coatings
Professional Refinisher Note: When the sprayer has enough atomizing power, the coating can be sprayed closer to the way the manufacturer intended. That helps protect gloss, adhesion, film build, and long-term coating performance.
8) Best Setup by Customer Type
| Customer Type | Recommended Setup | Why |
|---|---|---|
| Fine Wood Finisher | Gravity Feed / 1.0 or 1.3 mm / B Standard | Excellent control for stains, sealers, clears, and fine finish work. |
| Cabinet Refinisher | Gravity Feed / 1.3 or 1.5 mm / B HS | Better match for pigmented, higher-solids cabinet coatings. |
| Bathtub / Tile / Countertop Refinisher | Gravity Feed / 1.5 mm / B HS | Best all-around setup for high-solids 2K urethane topcoat work. |
| Primer-Heavy Contractor | Gravity or Bottom Feed / 1.8 mm / C HS | Better match for epoxy primers, high-build primers, and thicker materials. |
| Production Shop | Bottom Feed / 1.5 or 1.8 mm / B HS or C HS | More material capacity and fewer cup refills for repetitive spray work. |
APOLLO PRECISION SERIES
Professional 6-Stage HVLP Power for Modern Coatings
The Precision-6 Pro Plus is built for demanding professional finishers who need turbine power, pressure control, reduced overspray, and the flexibility to match the gun setup to the coating.
SHIPPING & ORDER DETAILS
Shipping is calculated at checkout.
This professional turbine system ships via ground depending on destination. Final shipping cost is displayed before order confirmation.
* APOLLO PRECISION-6 PRO PLUS AVAILABLE AS A PROFESSIONAL HVLP TURBINE SYSTEM PACKAGE.
Orders may require verification prior to shipping. Selected cup style, needle size, and air cap configuration should be confirmed before checkout.
PROFESSIONAL REFINISHER SETUP
Recommended EAH Industrial Starting Setup
For most bathtub, tile, countertop, cabinet, and professional wood refinishing customers, we recommend starting with the Gravity Feed A7700 gun, 1.5 mm needle/nozzle, and B-HS High Solids Air Cap.
For primer-heavy work:
Add or select the 1.8 mm needle/nozzle with C-HS Air Cap for epoxy primers, high-build primers, and heavier coating systems.
Add or select the 1.8 mm needle/nozzle with C-HS Air Cap for epoxy primers, high-build primers, and heavier coating systems.
* Final setup depends on coating viscosity, temperature, reducer blend, desired film build, and operator technique.
