Titan

Titan CAPSPRAY X Series 115 with Maxum II Spray Gun

(No reviews yet) Write a Review
SKU:
245904
MPN:
245904
Availability:
Shipping End of March 2026 - Accepting Pre-Orders
Weight:
24.00 LBS
Width:
24.00 (in)
Height:
24.00 (in)
Depth:
24.00 (in)
  • Titan X Series Model 115 6 Stage
  • Increases turbine life • Will have less heat to prevent dry spray • Ability to turn it off if you want more heat for specific coatings • Quieter
  • Capspray X 115 Product Walk Around Maxum II Gun Same superior spray quality that all Maxum guns offer CapLiner Cup System • Spray in any position; including upside down • Simple to no clean up • Easy color changes • Least coating loss of all “Bag in Cup” systems (1 oz better than next closest)
  • • Works with all non-bleeder, pressure-fed HVLP guns Variable Pressure Control (Capspray 115 Exclusive) With five preset positions (4.5 PSI – 11.5 PSI), you can easily adjust the sprayer for any fine finish job and always have the correct performance for your coating 7 New Cord Wrap WhisperTech Tabs highlight how to wrap cord on the cans (Capspray 115 Exclusive) • ON/OFF – Turns the turbine down to ~1.5 PSI when not spraying for 14 seconds •
  • Titan CAPSPRAY X Series 115 with Maxum II Spray Gun
  • Titan CAPSPRAY X Series 115 with Maxum II Spray Gun
  • Titan CAPSPRAY X Series 115 with Maxum II Spray Gun
  • Titan CAPSPRAY X Series 115 with Maxum II Spray Gun
Frequently bought together:

Description

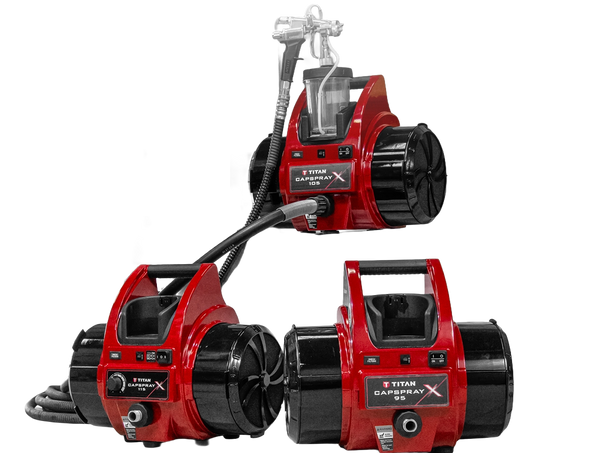

Capspray X-115 Series — Technical Comparison

Spec-driven breakdown for serious finishers. Built to highlight the real-world difference between 5-stage and 6-stage performance.

EAH INDUSTRIAL - SharkGrip Positioning:
5-Stage sprays. 6-Stage atomizes. If you’re running high-solids epoxies and modern 2K urethanes, PSI headroom protects your finish and your chemistry.
1) Core Turbine Performance
Model Turbine Stages Max Output (PSI) Adjustable Range Control Type Best Fit
Capspray X 95 4-Stage 9.5 Fixed Standard Light–medium coatings
Capspray X 105 5-Stage 10.5 Fixed Standard Medium–heavy coatings
Capspray X 115 6-Stage 11.5 4.5–11.5 PSI VPC + Pressure Sensor High-solids epoxy + 2K urethanes
*VPC (Variable Pressure Control) is exclusive to the X 115 and allows matching turbine output to coating demand.
2) Atomization Capability vs Coating Class
Coating Type 4-Stage (X 95) 5-Stage (X 105) 6-Stage (X 115)
Stains / Sealers / Clear Coats Ideal Ideal Ideal
Lacquers / Shellac Ideal Ideal Ideal
Enamels Possible Ideal Ideal
High-Solids Epoxy Primers Not Recommended Borderline Ideal
2K Urethanes (Low VOC / Higher Solids) Not Recommended Often Needs Reduction Ideal
High-Build Systems / Heavy Wet Film Targets Not Recommended Possible Ideal
Ideal Possible / Borderline Not Recommended
3) Field Effects: 5-Stage vs 6-Stage
5-Stage (10.5 PSI)
  • Good for medium-bodied coatings
  • High solids often pushes the limits
  • More likely to “solve” viscosity with reducer
  • Higher orange peel risk under heavy loads
6-Stage (11.5 PSI + VPC)
  • More atomization authority under load
  • Less need to over-reduce high-solids coatings
  • Better droplet break-up = smoother DOI & finish
  • Dial PSI to coating demand (4.5–11.5 PSI)
EAH Industrial Prop Tip: When equipment can’t atomize high solids, the operator thins the coating. That reduces sprayed solid content, alters film build, and can compromise durability, gloss retention, and recoat behavior.
4) Engineering Feature Grid
Feature X 95 X 105 X 115
Dual Filtration ✔ ✔ ✔
Maxum II Gun ✔ ✔ ✔
CapLiner Cup System ✔ ✔ ✔
Variable Pressure Control (VPC) — — ✔
WhisperTech (cooling / quieter idle) — — ✔
Error Reporting Codes / Sensor Monitoring — — ✔
5) Professional Application Tier
User Profile Recommended Model Why
Furniture / light finishing X 95 Best efficiency for light–medium materials
Cabinet pro / medium-heavy coatings X 105 5-stage headroom for heavier materials
Tub / Tile refinisher (high solids) X 115 6-stage + VPC protects finish quality & coating integrity
Cold climate contractor X 115 Higher output handles viscosity swings
Want a “an EAH Industrial Setup” recommendation?
Tell us your coating system and typical job conditions (temp, humidity, surfaces).
Call 210.822.9393
TECHNICAL BROCHURE

Download the Capspray X™ Spec & Feature Guide (PDF)

Includes model comparison, PSI / stage breakdown, parts & accessories, and feature maps.

⬇ Download PDF Open in new tab →
Prefer to talk it through? Call 210.822.9393
SHIPPING & PRE-ORDER DETAILS

Shipping is calculated at checkout.

This unit ships via ground depending on destination. Final shipping cost is displayed before order confirmation.



Pre-Order Model: Order Now & Estimated shipping end of March 2026.

TITAN FACTORY PROMOTION

FREE Maxum II™ Spray Gun

Purchase any Capspray X 95, 105, or 115 and receive a Maxum II Spray Gun (Retail $499) at no additional cost.

How it works:
• Titan includes a factory coupon inside the box
• Register your promo code directly with Titan
• Titan ships the Maxum II gun straight to you
*Factory promotion fulfilled by Titan Tool. Spray gun ships directly from manufacturer.
Free Maxum II Spray Gun
$499 Retail Value
View AllClose

Warranty Information

WearGuard® Warranty Program Best and Longest Warranty in the Industry • 4 Year Manufacturer’s Defect – We pledge that our sprayers are free from defects in materials and workmanship. • 2 Year Turbine Warranty – Against defects in materials and workmanship. • 35 Day Satisfaction Guarantee – lf for any reason the sprayer does not perform up to your expectations within 35 days, the sprayer can be exchanged for the identical model or full credit toward the purchase of a Titan sprayer of larger size and value. For more details, see TitanWearguard.
