Titan

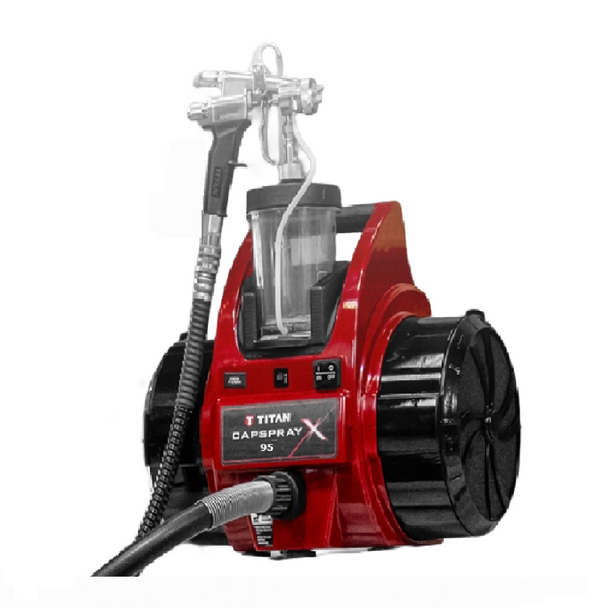

Titan CAPSPRAY X Series 95 with Maxum II Spray Gun
(No reviews yet)
Write a Review
- SKU:
- 2458984
- MPN:
- 2458984
- Availability:
- Currently in stock at Titan - Will Drop Ship from Factory
- Weight:
- 24.00 LBS
- Width:
- 24.00 (in)
- Height:
- 24.00 (in)
- Depth:
- 24.00 (in)
Frequently bought together:
Description
Capspray X- 95 Series — Technical Comparison
Spec-driven breakdown for serious finishers. Built to highlight the real-world difference between 5-stage and 6-stage performance.
EAH INDUSTRIAL - SharkGrip Positioning:
5-Stage sprays. 6-Stage atomizes. If you’re running high-solids epoxies and modern 2K urethanes, PSI headroom protects your finish and your chemistry.
1) Core Turbine Performance
| Model | Turbine Stages | Max Output (PSI) | Adjustable Range | Control Type | Best Fit |
|---|---|---|---|---|---|
| Capspray X 95 | 4-Stage | 9.5 | Fixed | Standard | Light–medium coatings |
| Capspray X 105 | 5-Stage | 10.5 | Fixed | Standard | Medium–heavy coatings |
| Capspray X 115 | 6-Stage | 11.5 | 4.5–11.5 PSI | VPC + Pressure Sensor | High-solids epoxy + 2K urethanes |
*VPC (Variable Pressure Control) is exclusive to the X 115 and allows matching turbine output to coating demand.
2) Atomization Capability vs Coating Class
| Coating Type | 4-Stage (X 95) | 5-Stage (X 105) | 6-Stage (X 115) |
|---|---|---|---|
| Stains / Sealers / Clear Coats | Ideal | Ideal | Ideal |
| Lacquers / Shellac | Ideal | Ideal | Ideal |
| Enamels | Possible | Ideal | Ideal |
| High-Solids Epoxy Primers | Not Recommended | Borderline | Ideal |
| 2K Urethanes (Low VOC / Higher Solids) | Not Recommended | Often Needs Reduction | Ideal |
| High-Build Systems / Heavy Wet Film Targets | Not Recommended | Possible | Ideal |
Ideal Possible / Borderline Not Recommended
3) Field Effects: 5-Stage vs 6-Stage
5-Stage (10.5 PSI)
- Good for medium-bodied coatings
- High solids often pushes the limits
- More likely to “solve” viscosity with reducer
- Higher orange peel risk under heavy loads
6-Stage (11.5 PSI + VPC)
- More atomization authority under load
- Less need to over-reduce high-solids coatings
- Better droplet break-up = smoother DOI & finish
- Dial PSI to coating demand (4.5–11.5 PSI)
EAH Industrial Prop Tip: When equipment can’t atomize high solids, the operator thins the coating. That reduces sprayed solid content, alters film build, and can compromise durability, gloss retention, and recoat behavior.
4) Engineering Feature Grid
| Feature | X 95 | X 105 | X 115 |
|---|---|---|---|
| Dual Filtration | ✔ | ✔ | ✔ |
| Maxum II Gun | ✔ | ✔ | ✔ |
| CapLiner Cup System | ✔ | ✔ | ✔ |
| Variable Pressure Control (VPC) | — | — | ✔ |
| WhisperTech (cooling / quieter idle) | — | — | ✔ |
| Error Reporting Codes / Sensor Monitoring | — | — | ✔ |
5) Professional Application Tier
| User Profile | Recommended Model | Why |
|---|---|---|
| Furniture / light finishing | X 95 | Best efficiency for light–medium materials |
| Cabinet pro / medium-heavy coatings | X 105 | 5-stage headroom for heavier materials |
| Tub / Tile refinisher (high solids) | X 115 | 6-stage + VPC protects finish quality & coating integrity |
| Cold climate contractor | X 115 | Higher output handles viscosity swings |
TECHNICAL BROCHURE
Download the Capspray X™ Spec & Feature Guide (PDF)
Includes model comparison, PSI / stage breakdown, parts & accessories, and feature maps.
SHIPPING & PRE-ORDER DETAILS
Shipping is calculated at checkout.
This unit ships via ground depending on destination. Final shipping cost is displayed before order confirmation.
Pre-Order Model: Order Now & Estimated shipping end of March 2026.
TITAN FACTORY PROMOTION
FREE Maxum II™ Spray Gun
Purchase any Capspray X 95, 105, or 115 and receive a Maxum II Spray Gun (Retail $499) at no additional cost.
How it works:
• Titan includes a factory coupon inside the box
• Register your promo code directly with Titan
• Titan ships the Maxum II gun straight to you
• Titan includes a factory coupon inside the box
• Register your promo code directly with Titan
• Titan ships the Maxum II gun straight to you
*Factory promotion fulfilled by Titan Tool. Spray gun ships directly from manufacturer.
$499 Retail Value
Warranty Information
WearGuard® Warranty Program Best and Longest Warranty in the Industry • 4 Year Manufacturer’s Defect – We pledge that our sprayers are free from defects in materials and workmanship. • 2 Year Turbine Warranty – Against defects in materials and workmanship. • 35 Day Satisfaction Guarantee – lf for any reason the sprayer does not perform up to your expectations within 35 days, the sprayer can be exchanged for the identical model or full credit toward the purchase of a Titan sprayer of larger size and value. For more details, see TitanWearguard.
